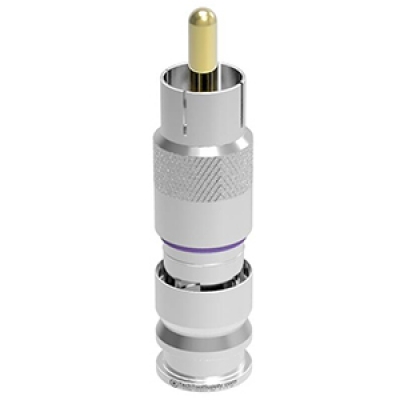

RCA Compression Connector for RG6, Universal Fit

Holland Electronics new universal compression connectors were created with the Commercial AV Installers’ needs in mind. This series consists of five Universal Connectors that terminate most major brands of cable, including Plenum RG-6, RG-6, RG-59, Mini- 23 AWG and Mini 25 AWG cables.

Features & Specifications

• Easy insertion
• All metal construction
• Optimized for digital video applications
• Patented viewing window
• Accommodates color-coded application bands
• Cable Type: RG6
• Connector: RCA
• Frequency Range: DC - 3,000 MHz
• Return Loss (1 GHz): > -27dB
• Return Loss (3 GHz): > -21dB
• Insertion Loss (1 GHz): < .15 dB Max
• Jacket O.D. Range: 5.9 - 6.9
• Pull Force: 70 lbs. typical
