CAT5E 24awg 4pr UTP OSP Dry Block Cable, Black Jacket (1000ft/Roll)

Home > Cable/Wire > Cable Wire > Cable - Data

CAT5E 24awg 4pr UTP OSP Dry Block Cable, Black Jacket (1000ft/Roll)

Hover over image to zoom

Price: Contact for Price

Product ID : 5EOSPBK2

Manufacturer: Wavenet

E-mail to a friend

Please complete this form.
All fields are required.

Your name

Your email address

Your friend's name

Your friend's email

Purchase

Contact for Price

Priced per

Roll

Description

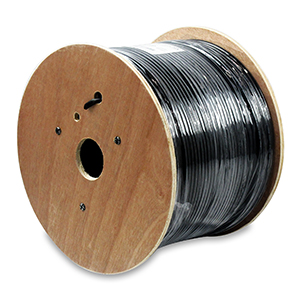

CAT5e 24AWG Direct Burial Outdoor High Performance Cable, Black Jacket, 1000ft/Roll

Features & Specifications

Applicable Standards

ETL Listed Type CMX
C(ETL) listed CMX
ETL Verified to TIA ‐ 568‐C.2, and ISO/IEC 11801
ROHS Compliant
ATM 155 Mbps
Ethernet 10BASE‐T, 100BASE‐TX, 100BASE‐VG, 100BASE‐T4
1000 Mbps 1000BASE‐T Gigabit Ethernet™ (IEEE 802.3)
16 Mbps Token Ring™ (IEEE 802.5)

Physical Characteristics
Number of Conductor Pairs: 4
Size: 24 AWG
Stranding: Solid
Conductor Material: Solid Annealed Bare Copper
Shield Material: Unshielded
Rip Cord: Yes
Insulation Material: HDPE
Insulation Overall Diameter: 0.0341" ± 0.0002"
Insulation Average Thickness: 0.0078"
Jacket: LDPE
Outer Jacket Average Wall Thickness: 0.020"
Outer Jacket Nom. O.D: 0.205" ± 0.008"
