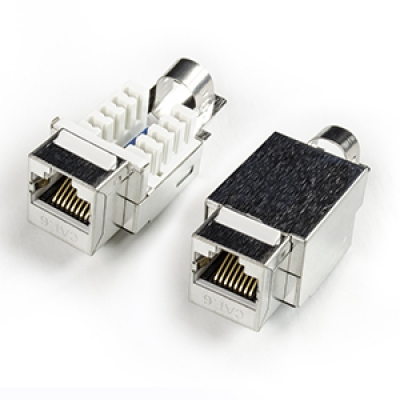

Category 6 Keystone Jack RJ-45, Fully Shielded
Hover over image to zoom
Price: Contact for Price
Product ID : KJ2-8P8C-C6-90SHF-WH
Manufacturer: Hyperline
E-mail to a friend
Please complete this form.
All fields are required.
All fields are required.
Description
Pricing provided on order confirmation
Features & Specifications
Specifications
Category identification on the front side of the panel
Conductor color code according to T568B and T568A
Contact color and numerical marking
Hyperline patch cord usage provides the best connection
Two types of tools may be used for termination: 110 and type
Materials
Housing: ABS UL94V-0
IDC: PC UL94V-0, accepts 22-26 AWG solid wire
PCB: FR-4 1.6 mm (0.062″) thick, 2 layers
Contact: 0.45 mm (0.017″) in diameter, phosphor and bronze with 1.27 micron (50 microinches) gold sputtering
Electrical Characteristics
In accordance with UL 1863
Current rating: 1.5 max
Voltage rating: 150 V
Contact resistance: 20 mohm
Insulation resistance: 500 mohm
Dielectric withstand voltage: 1000 V, AC RMS, 60 Hz/1min
Features & Specifications
Specifications
Category identification on the front side of the panel
Conductor color code according to T568B and T568A
Contact color and numerical marking
Hyperline patch cord usage provides the best connection
Two types of tools may be used for termination: 110 and type
Materials
Housing: ABS UL94V-0
IDC: PC UL94V-0, accepts 22-26 AWG solid wire
PCB: FR-4 1.6 mm (0.062″) thick, 2 layers
Contact: 0.45 mm (0.017″) in diameter, phosphor and bronze with 1.27 micron (50 microinches) gold sputtering
Electrical Characteristics
In accordance with UL 1863
Current rating: 1.5 max
Voltage rating: 150 V
Contact resistance: 20 mohm
Insulation resistance: 500 mohm
Dielectric withstand voltage: 1000 V, AC RMS, 60 Hz/1min
